Features:
● It combines granulation, pelleting and coating functions.
● Granulation of powder materials.
● Powder coating.
● Powder material pellets.
● Chinese medicine spray granulation and coating.
● Prepare 10-30 mesh granules.
● Powder, granule, pill film, enteric, slow-release coating.
● Taste-masking, moisture-proof, oxidation-proof, water-proof, heat-proof, coloring, isolation coating.
● Powdery, granular and lumpy materials are dried.
Application Overview:

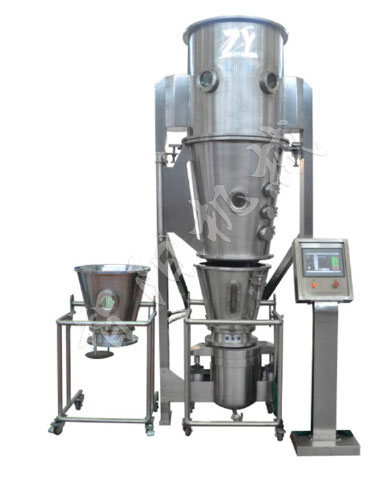

● DLP multifunctional granulation coating experiment machine is a multifunctional equipment integrating spray drying, granulation, centrifugal pelleting, fluid coating and drying. The machine is compatible with a variety of process operations. It is especially suitable for multi-variety, multi-dose granulation, pelleting and coating in the pharmaceutical, food, chemical and other industries.
| specification |
DLP-10 |
DLP-15 |
DLP-20 |
DLP930 |
DLP-45 |
DLP-60 |
DLP-90 |
DLP-120 |
||
|
project |
|
|
|
|
|
|
|
|
||
|
Feeding amount |
Kg / batch |
2.5-10 |
3~15 |
5~20 |
7.5~30 |
10~45 |
15~60 |
20~90 |
30~120 |
|
|
Raw material container diameter |
Mm |
700 |
800 |
900 |
1000 |
1100 |
1200 |
1400 |
1500 |
|
|
Fan power |
Kw |
7.5 |
11 |
11 |
11 |
15 |
15 |
18.5 |
18.5 |
|
|
Noise |
db |
Fan isolation processing noise is less than 75dB |
||||||||
|
Compressed air |
Pressure |
Mpa |
0.6 |
|
|
|
|
|
|
|
|
|
Consumption |
M3/min |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
1.6 |
1.6 |
|
Steam |
Pressure |
Mpa |
0.4-0.6 |
|||||||
|
|
Consumption |
Kg/h |
35 |
42 |
47 |
60 |
140 |
160 |
160 |
240 |
|
Electric heating power |
Kw |
Design By client according to user requirements |
||||||||
|

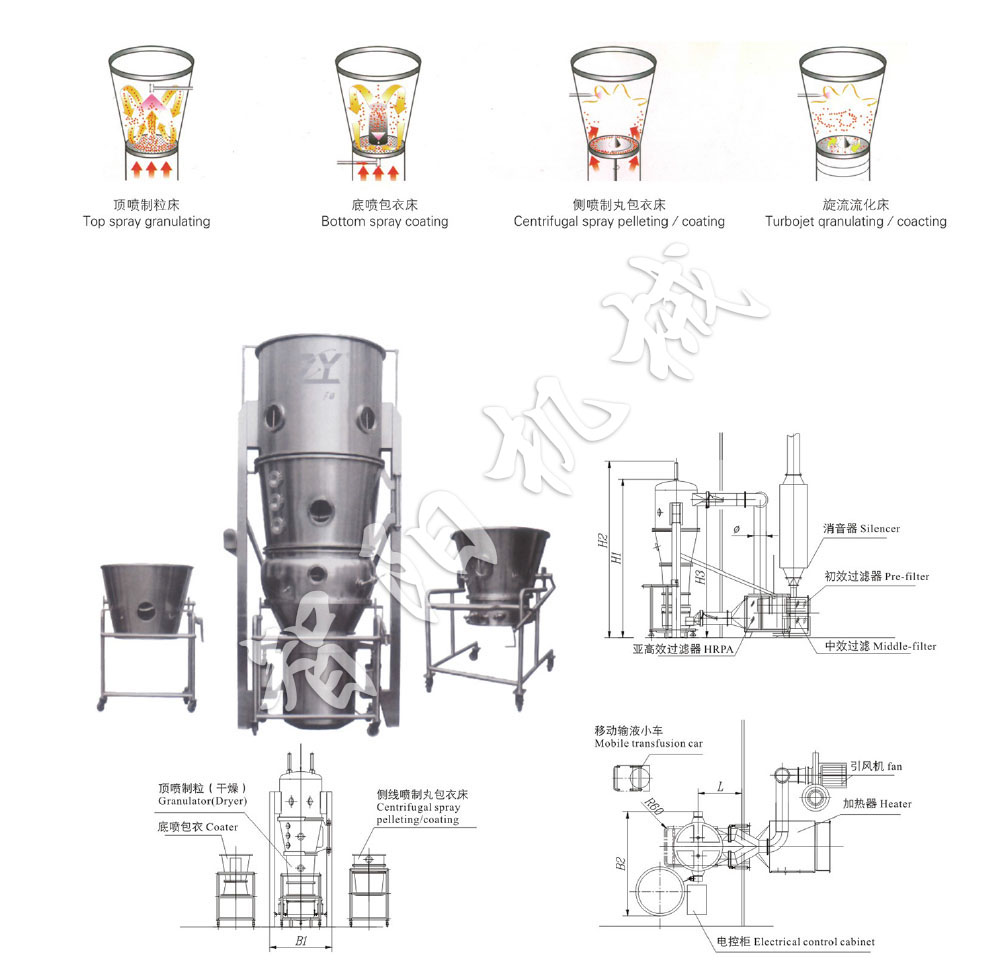

Host size |
H1(mm) |
2960 |
3350 |
3650 |
3720 |
3720 |
3850 |
3950 |
4190 |
|
|
H2(mm) |
3320 |
3820 |
4120 |
4190 |
4190 |
4320 |
4420 |
4660 |
||
|
H3(mm) |
2770 |
3130 |
3430 |
3500 |
3500 |
3630 |
3720 |
3975 |
||
|
B1(mm) |
1160 |
1460 |
1560 |
1600 |
1760 |
1860 |
1960 |
2060 |
||
|
B2(mm) |
1860 |
2460 |
2660 |
2860 |
3060 |
3260 |
4360 |
3660 |
||
|
L(mm) |
1250 |
1400 |
1450 |
1500 |
1550 |
1600 |
1650 |
1700 |
||
|
￠ |
180 |
250 |
250 |
280 |
280 |
280 |
280 |
315 |
||
